Stovetop Styles

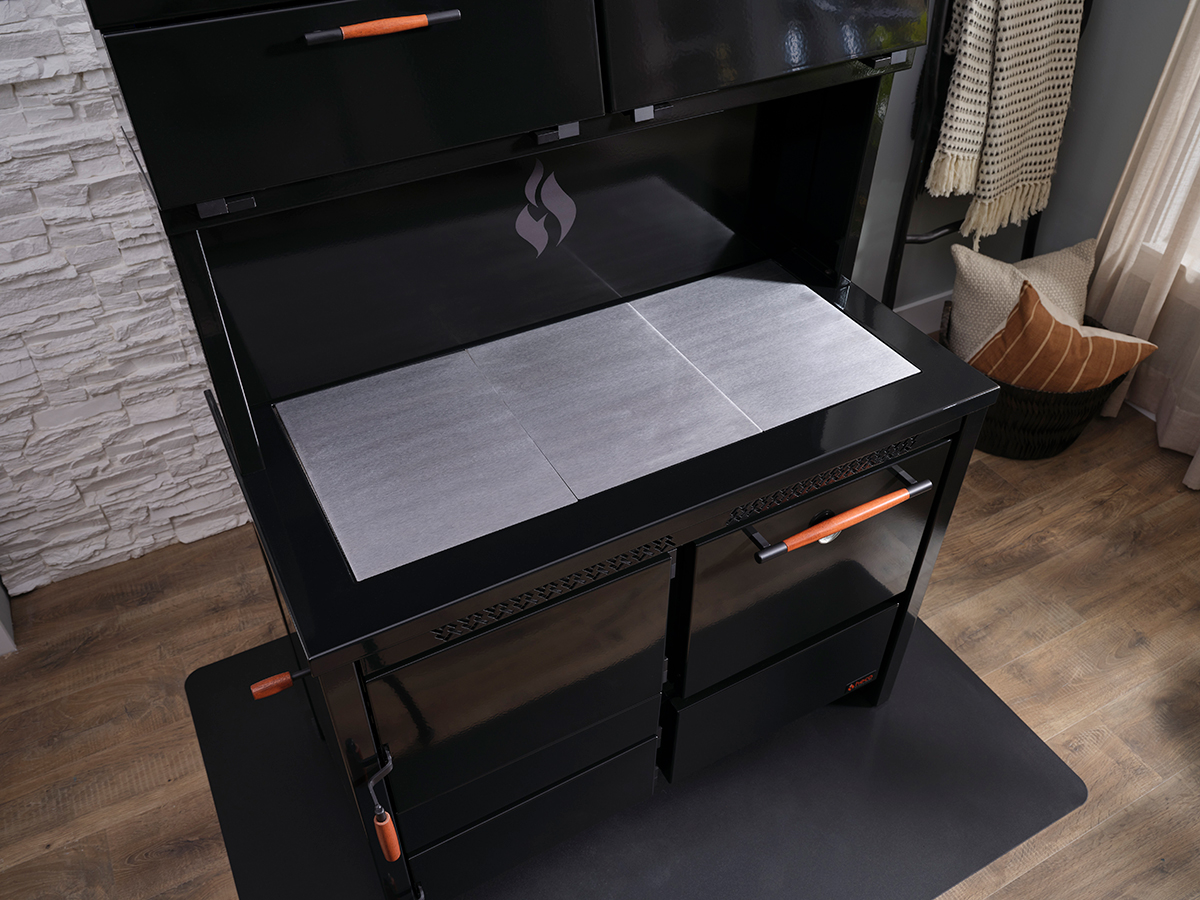

3 Panel Polished Steel
Removable cooking surface for full cleaning access. Panels will turn a golden blue color with use.

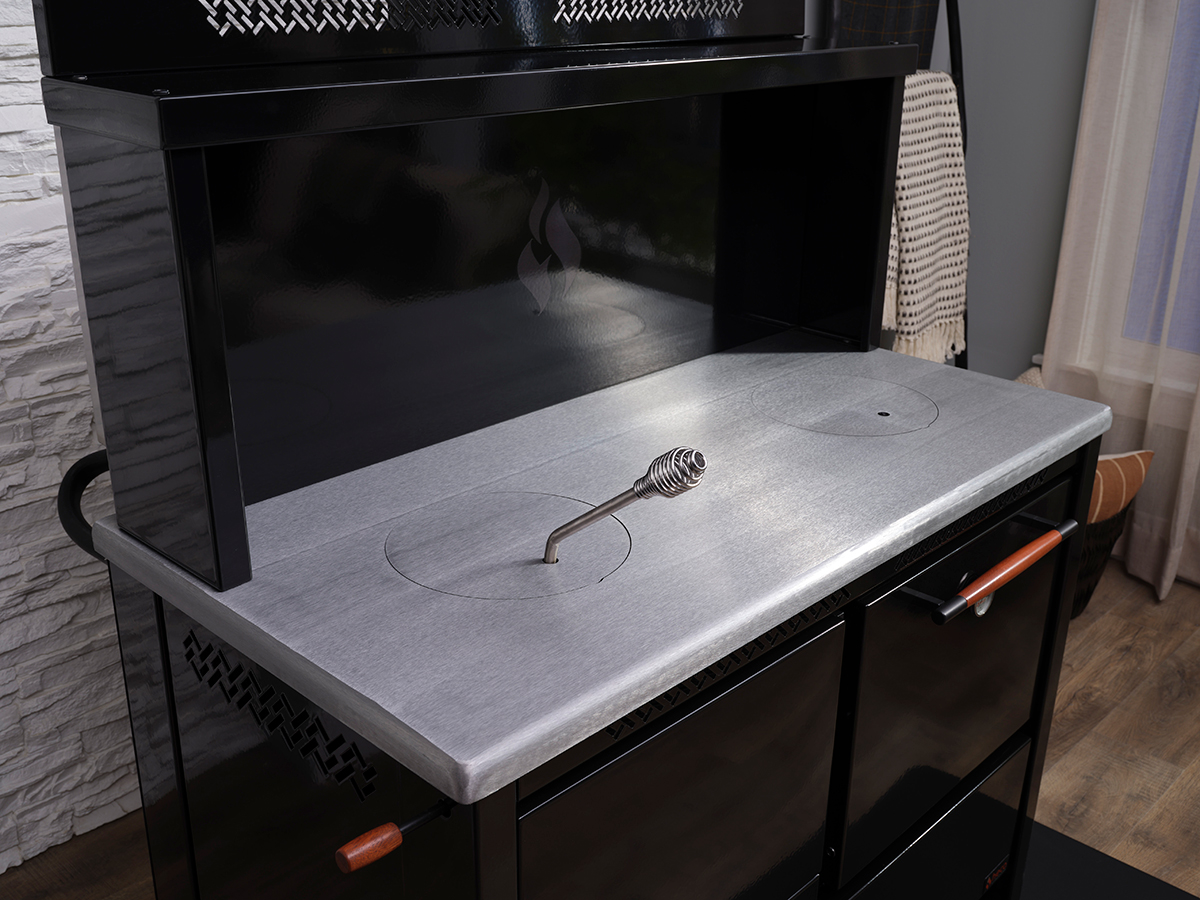

Solid Polished Steel
Welded to stove body w/ 2 access lids. Will turn a golden blue color with use.

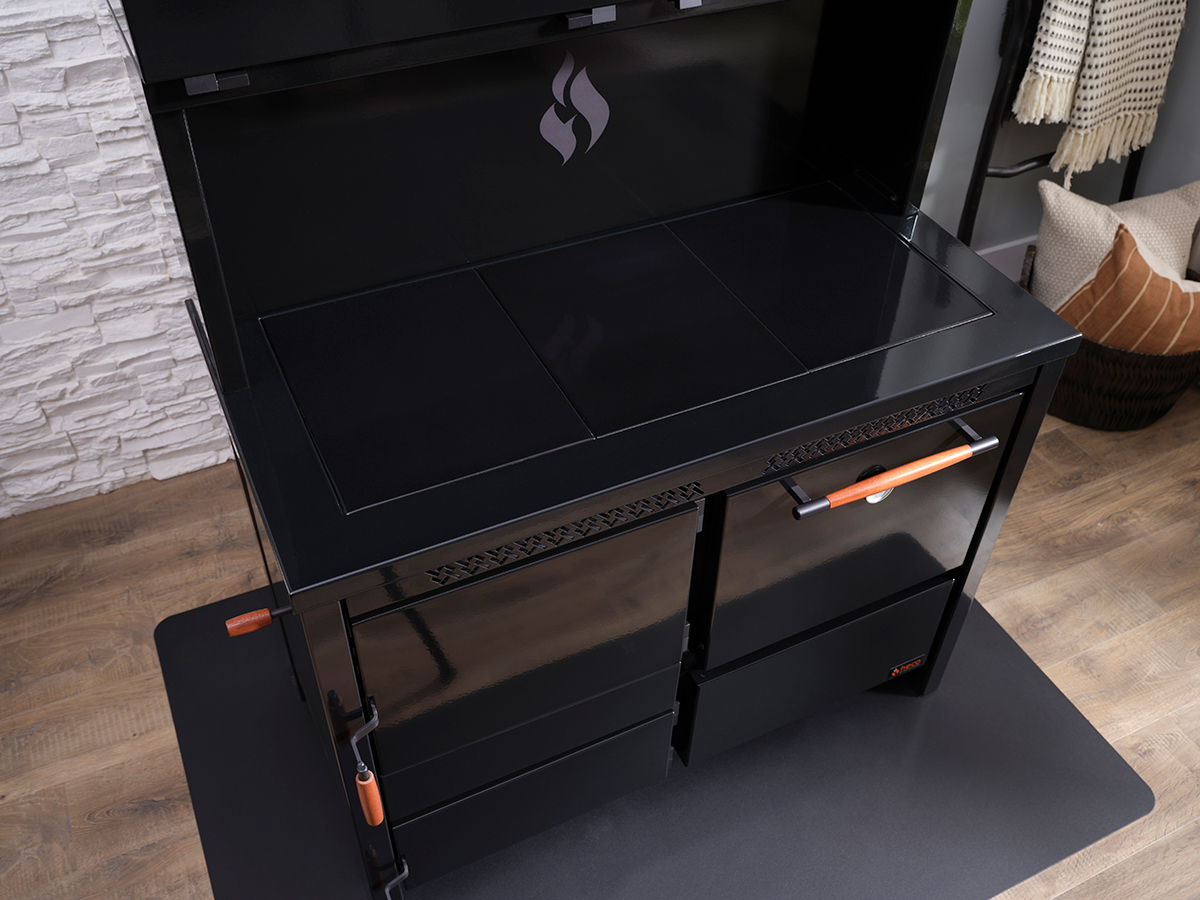

3 Panel Porcelain Enamel
Removable cooking surface for full cleaning access. Panels match the stove body for a clean look.
Fire Door Styles

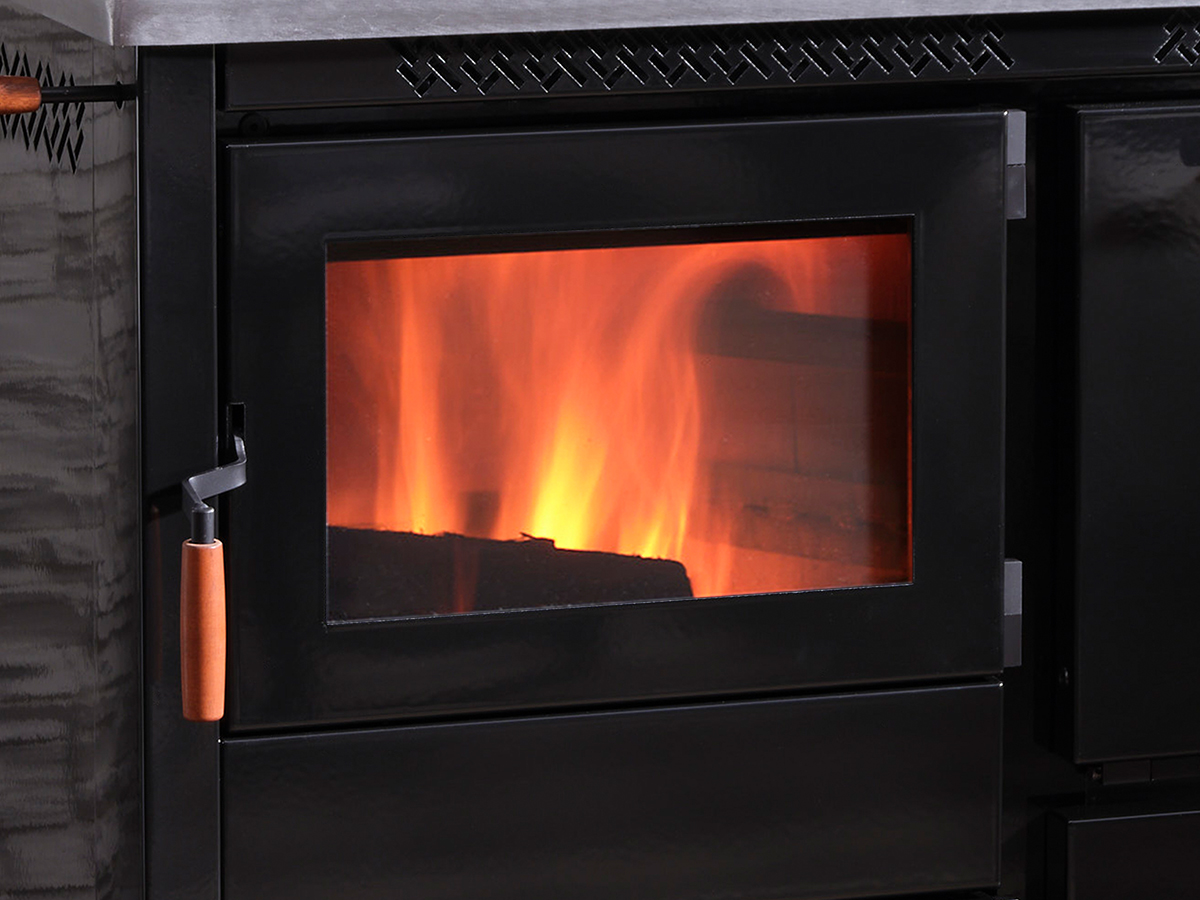

Glass Door
A great view of your fire. Allows more heat to radiate into your room.

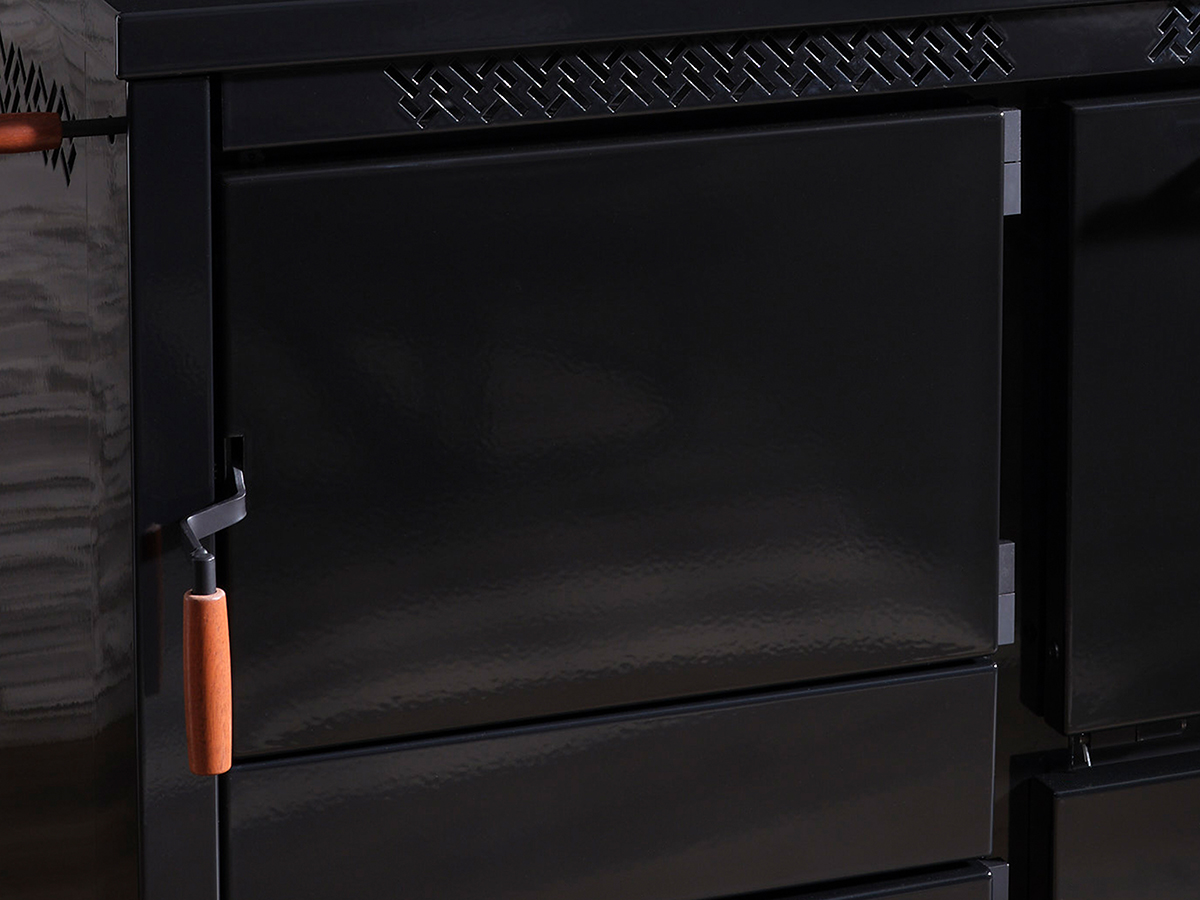

Solid Door
A cost-effective simple look. Retains more heat inside fire box.
Oven Door Styles

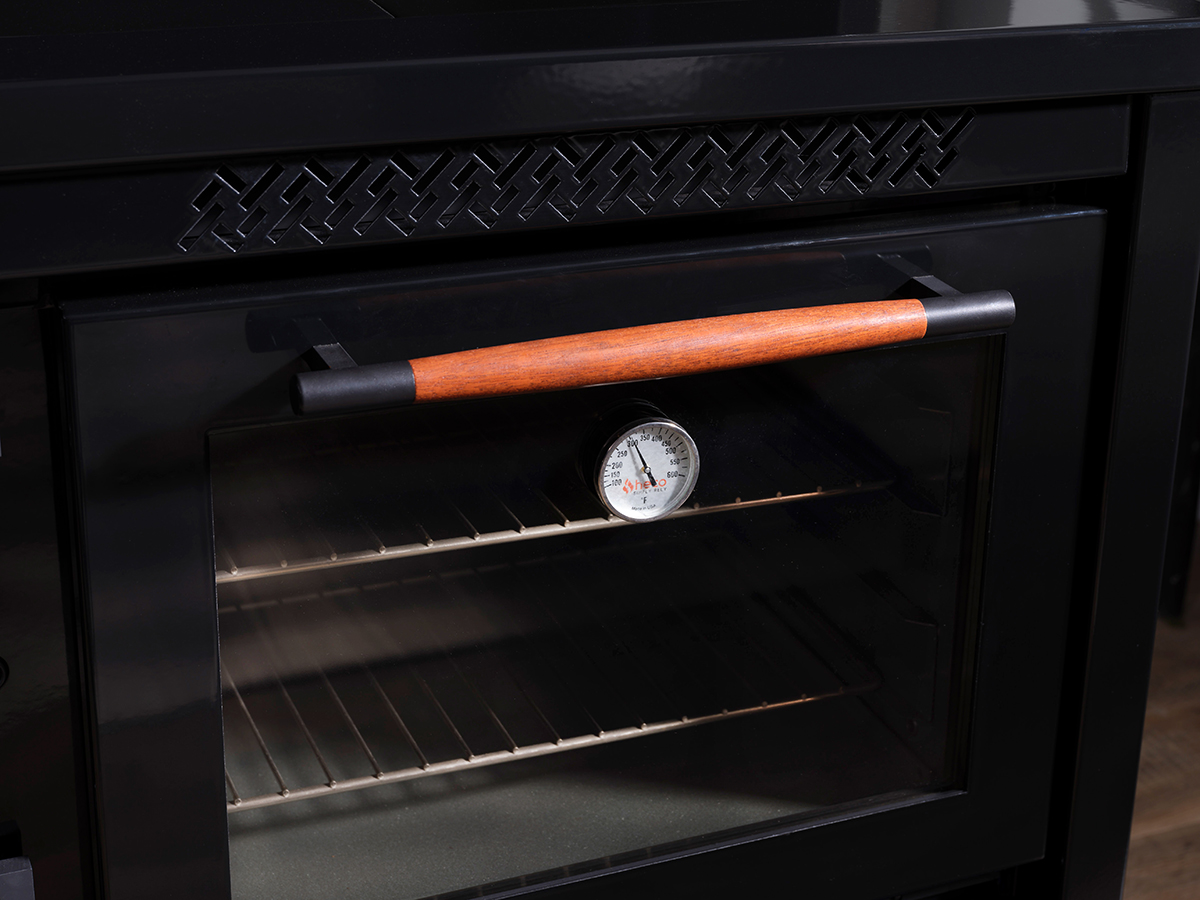

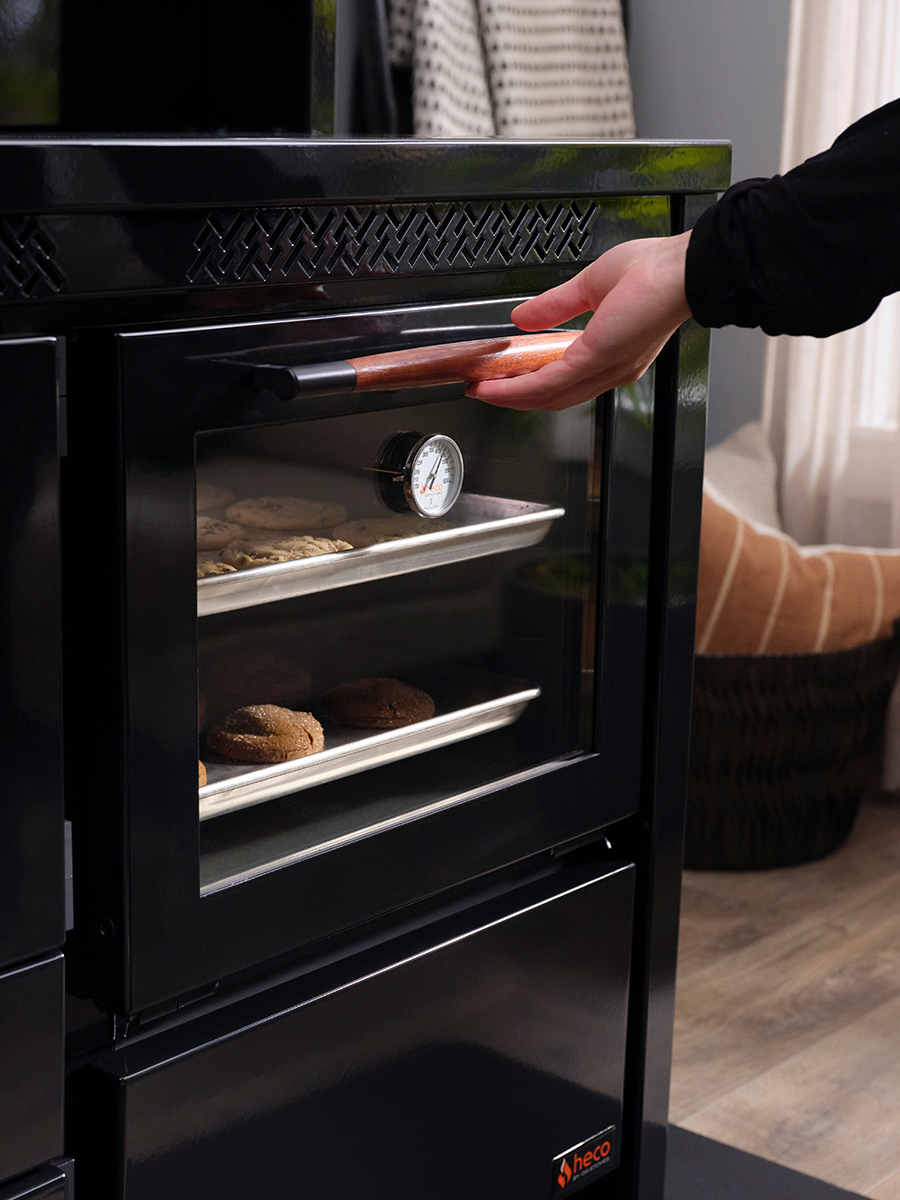

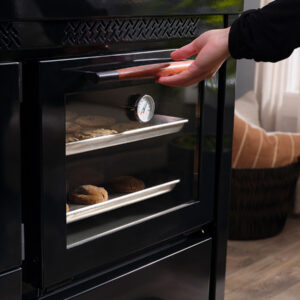

Glass Door
Added style for your cookstove. Allows for a great view of your food.

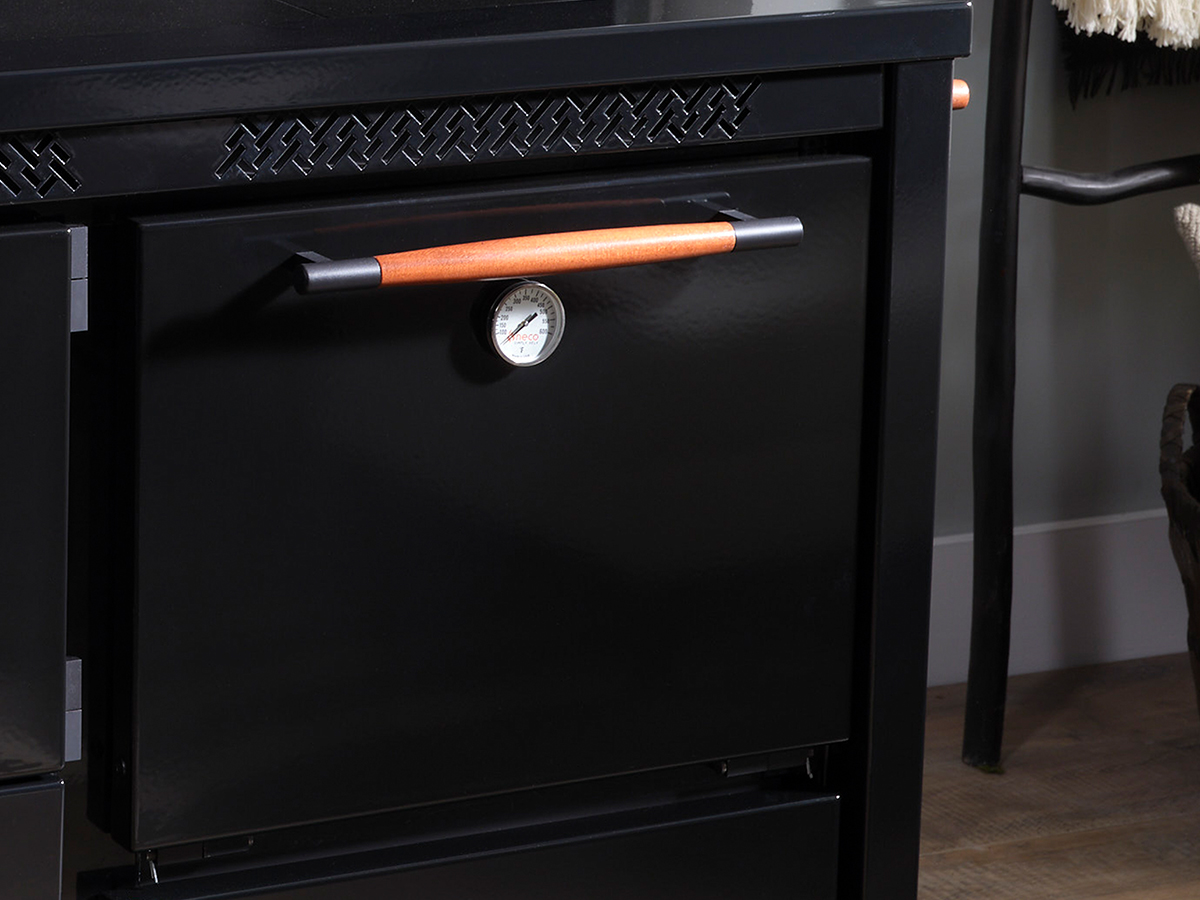

Solid Door
A cost-effective simple look. Retains more heat for the serious baker.
Warming Shelf & Closet Styles

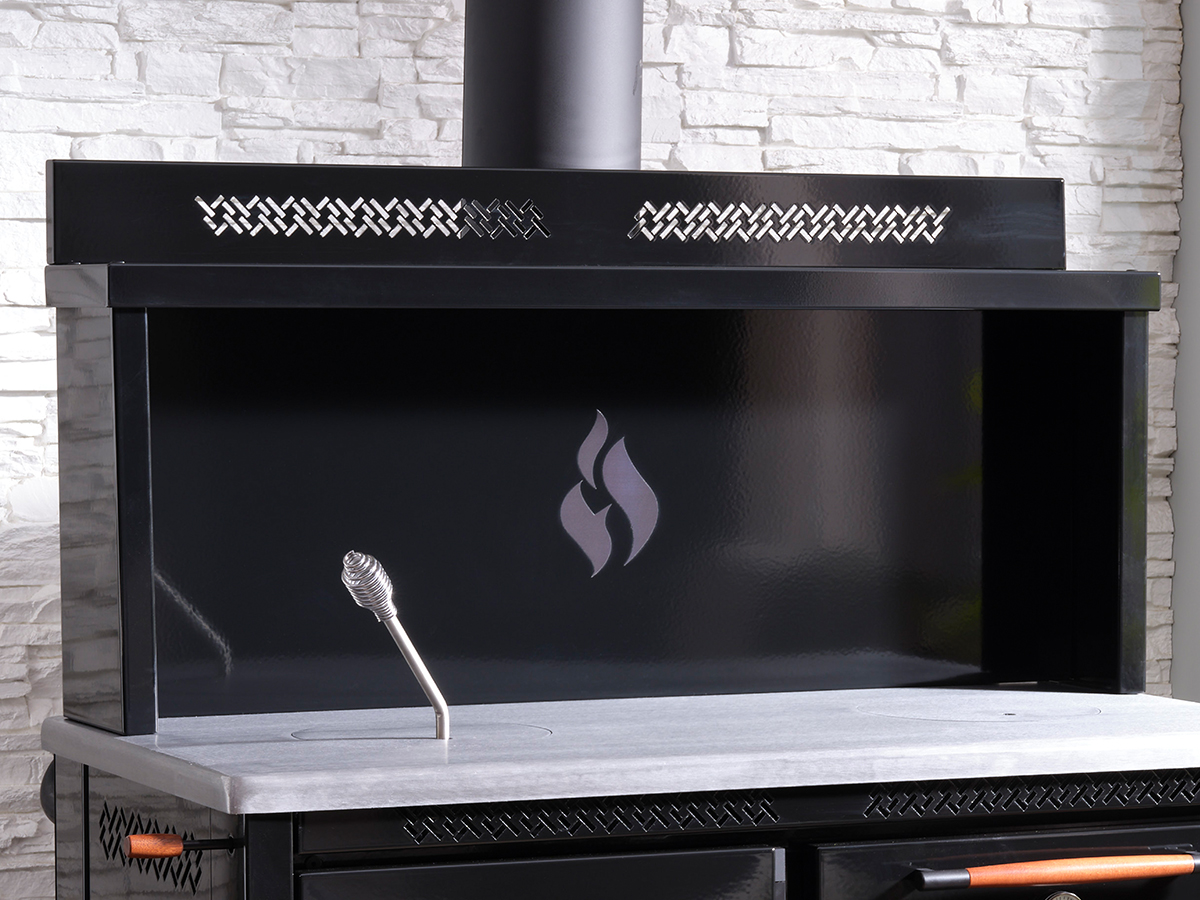

Warming Shelf
Classic cookstove style. Keeps food & drinks warm. A Great place to dry clothing.

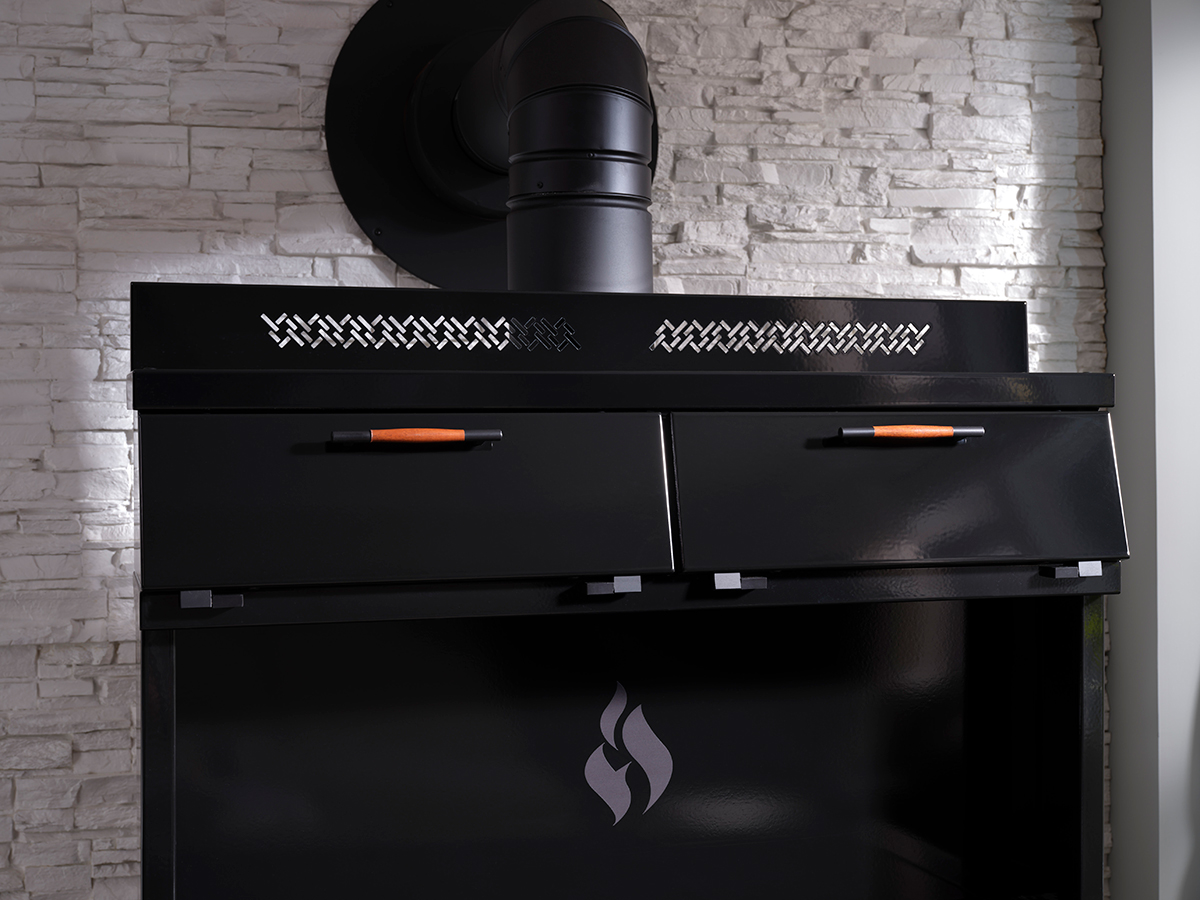

Warming Closet w/ Shelf
Added style & presence. Keeps food & drink warmer than shelf. Enclosed storage for numerous uses.
Cookstove Controls

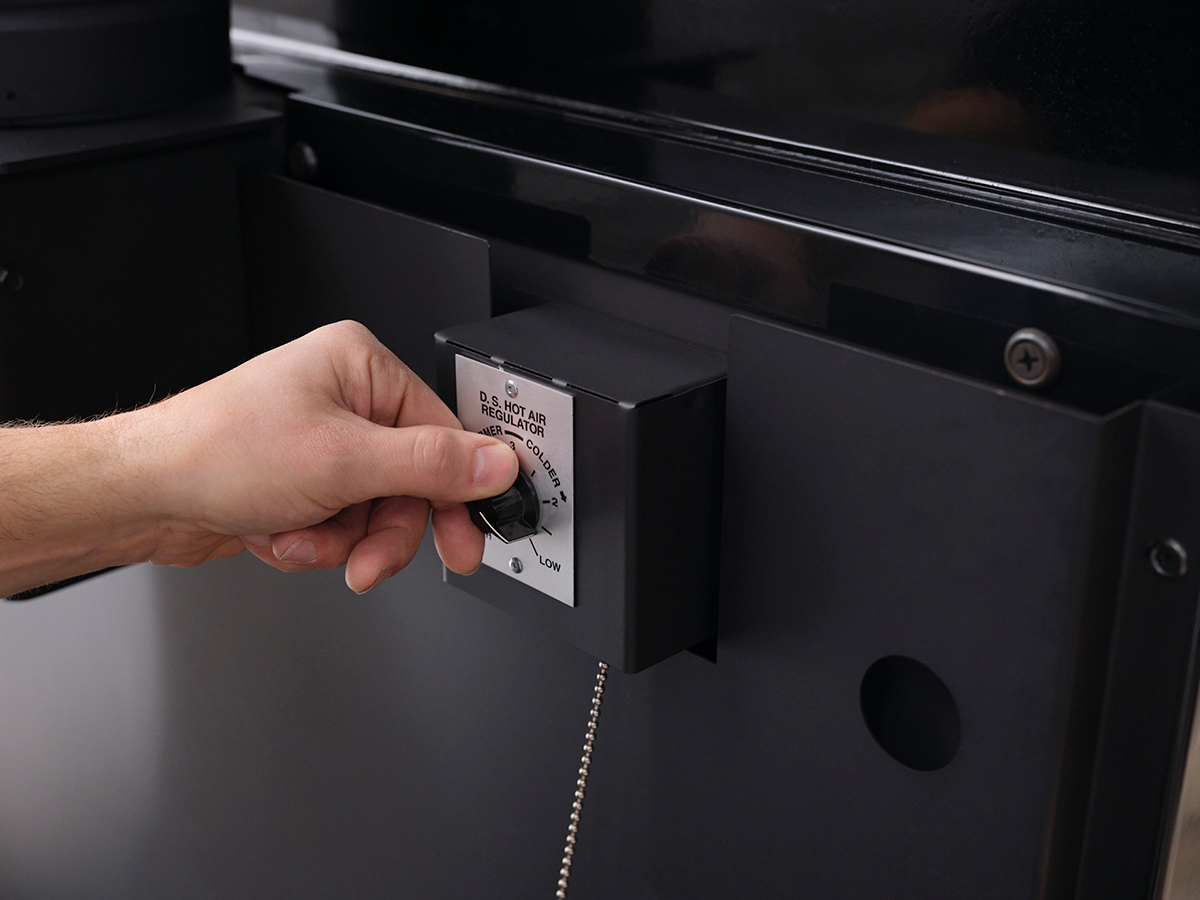

DS Hot Air Draft Regulator
Automatic control of your primary air. Set the regulator to your desired temperature.

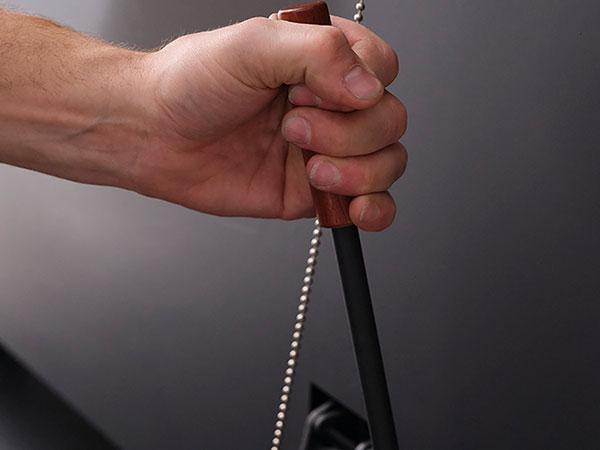

Shaker Handle
Located at left rear of stove. Easy removal of ashes from fire box into ash pan.

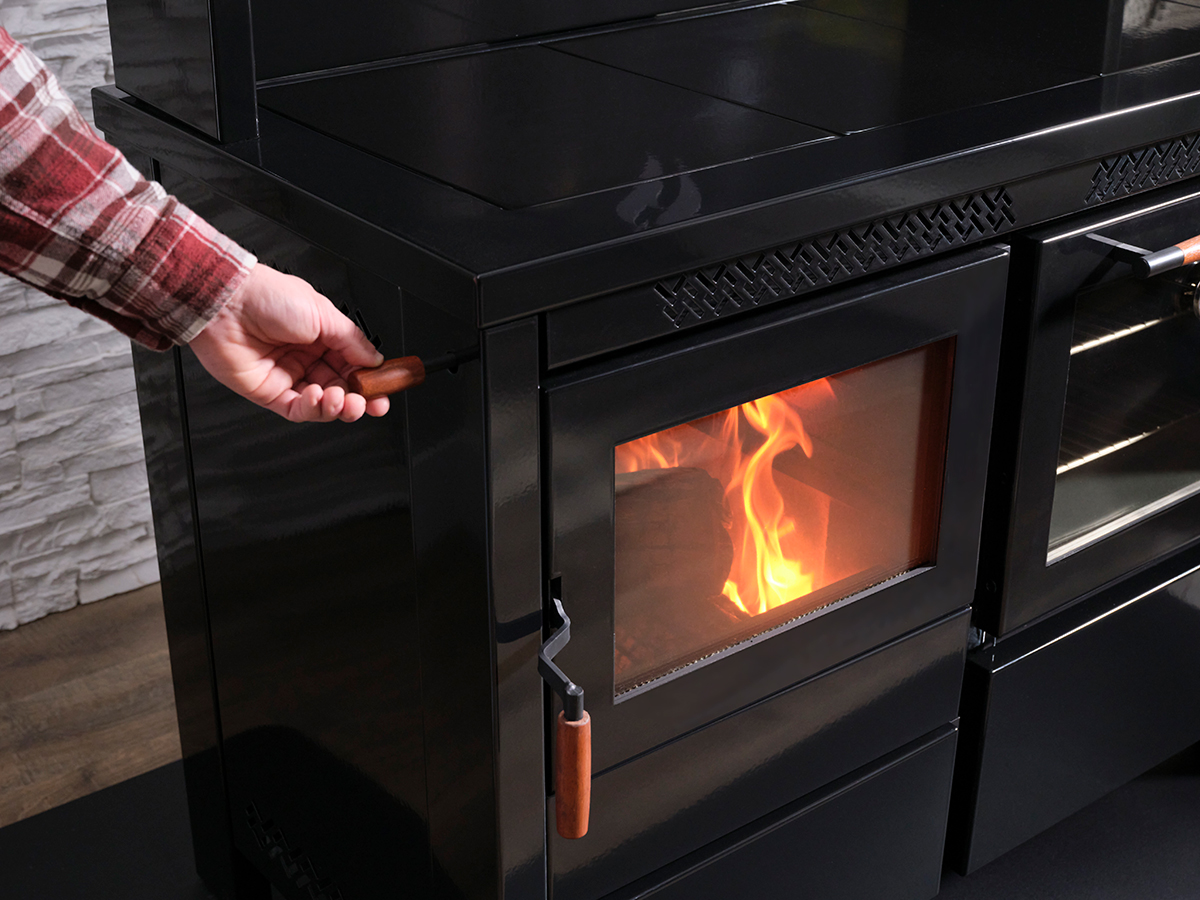

Air Wash Control
Provides secondary air for reburn system. Primary air for wood burning & door air wash.

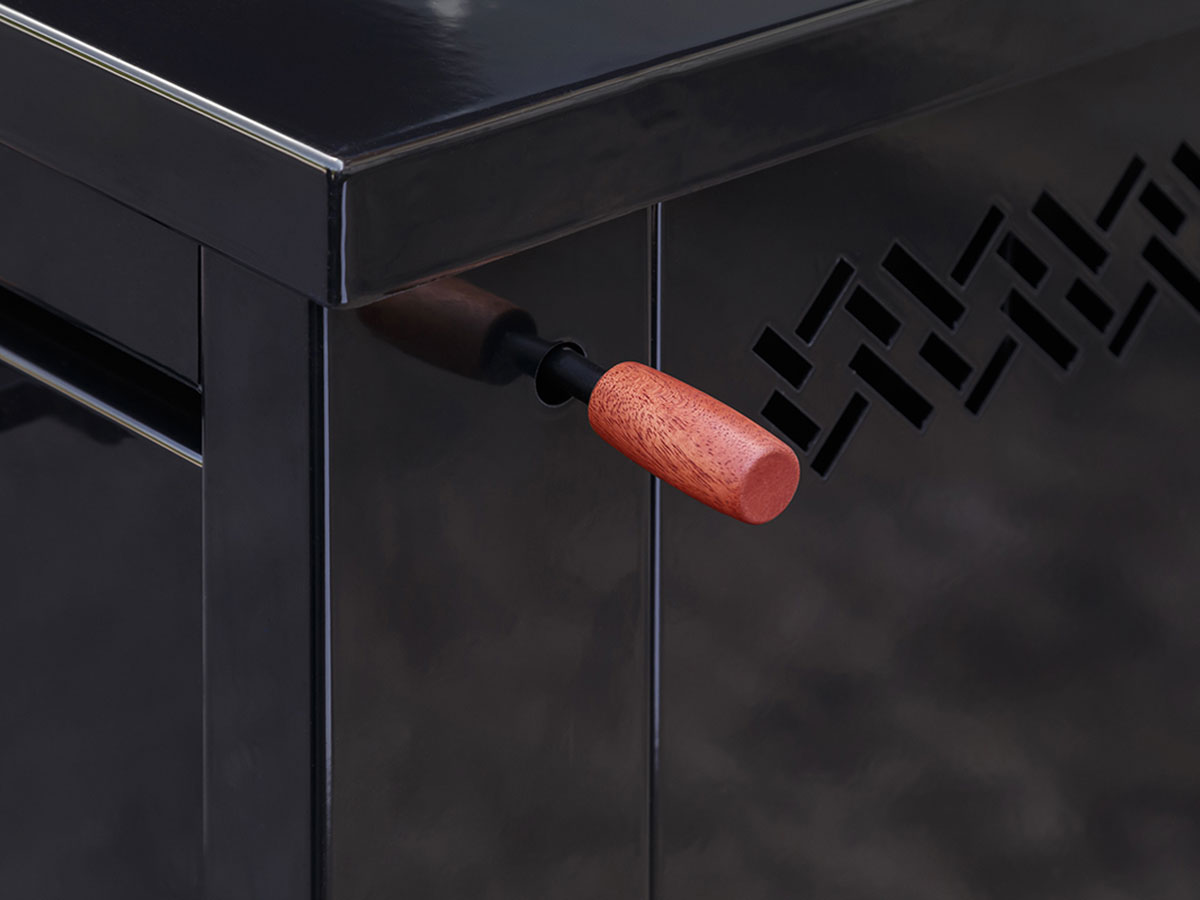

Oven Bypass Control
Controls bake oven usage. Pull out on control to engage oven.
Easy Access Cleanouts

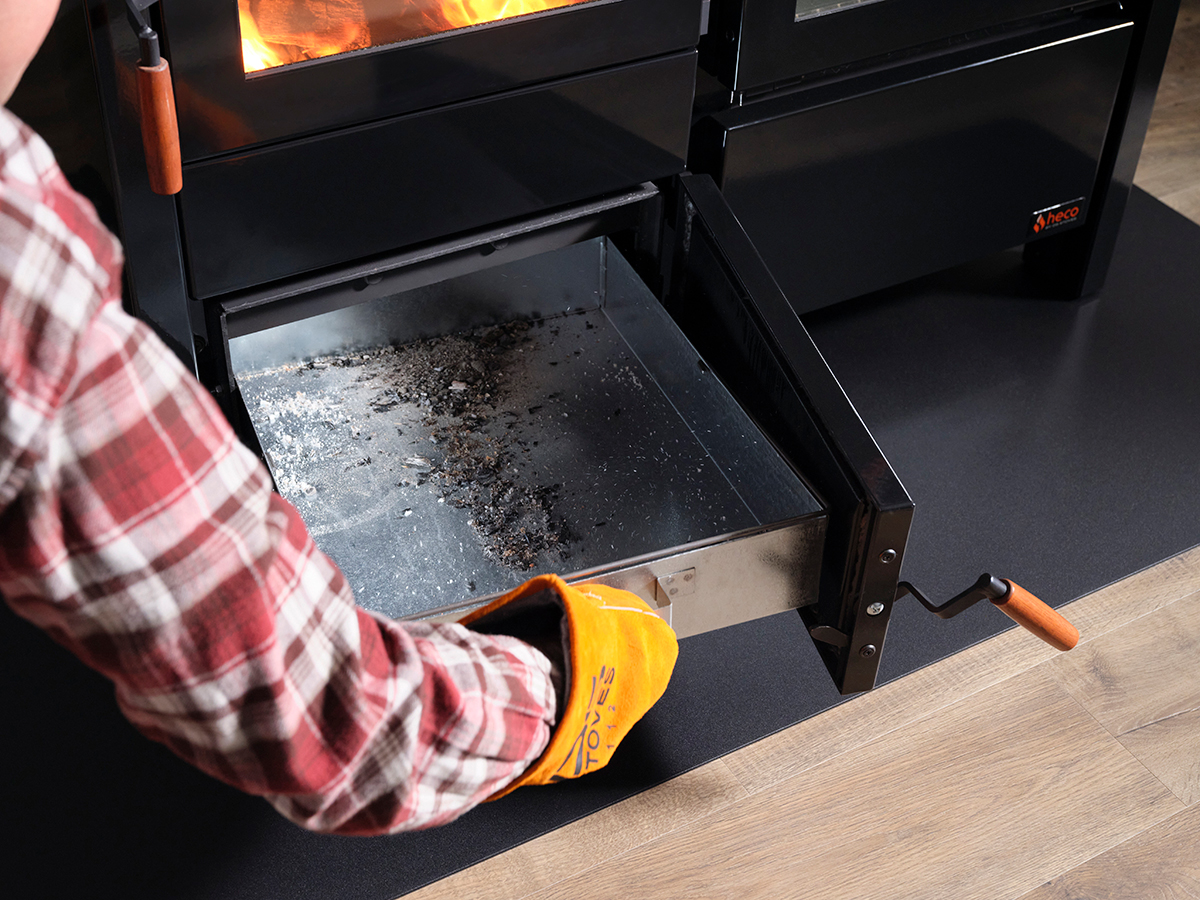

Ash Pan Under Fire Box
Less mess & easier cleaning. Can be used to catch ashes from front cleanout.

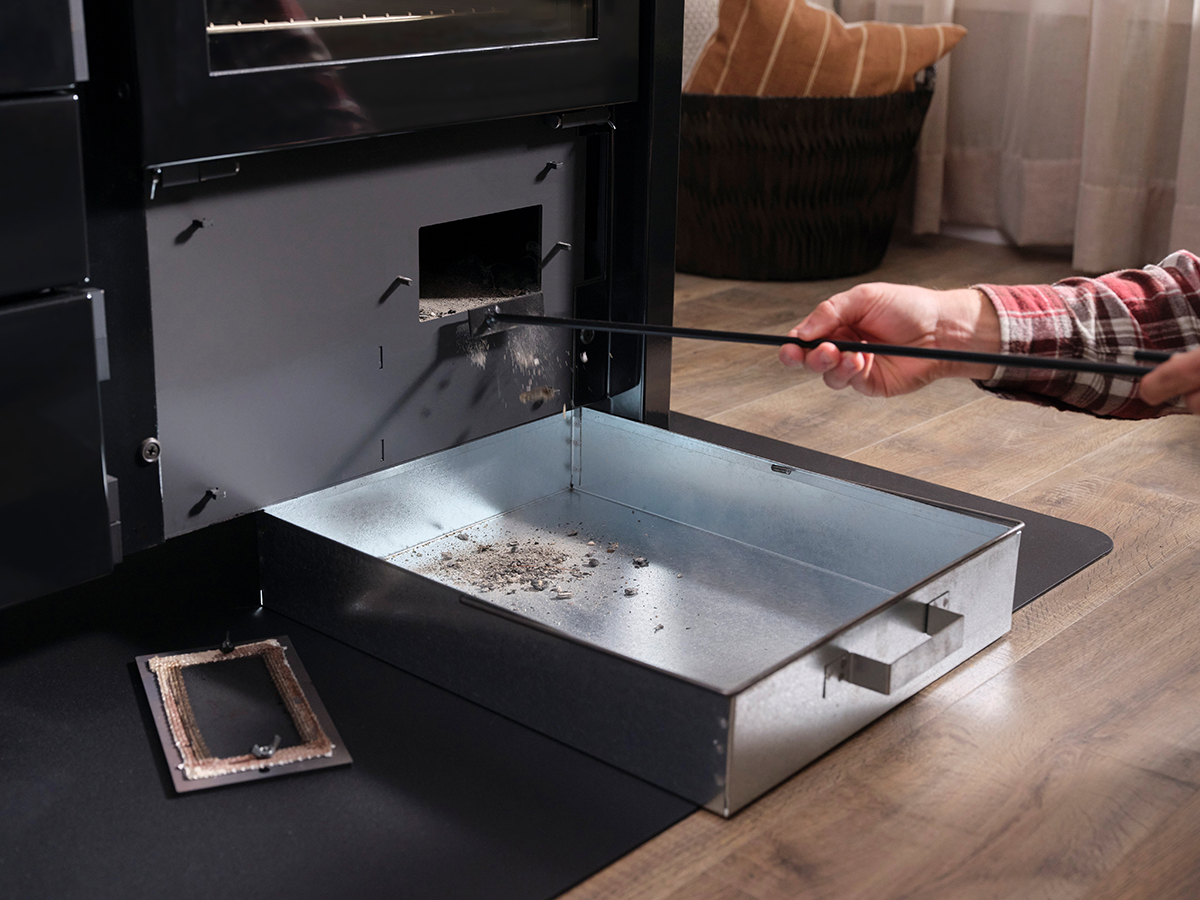

Front Ash Cleanout
Located under the bake oven. Use the scraper rod to clean periodically.

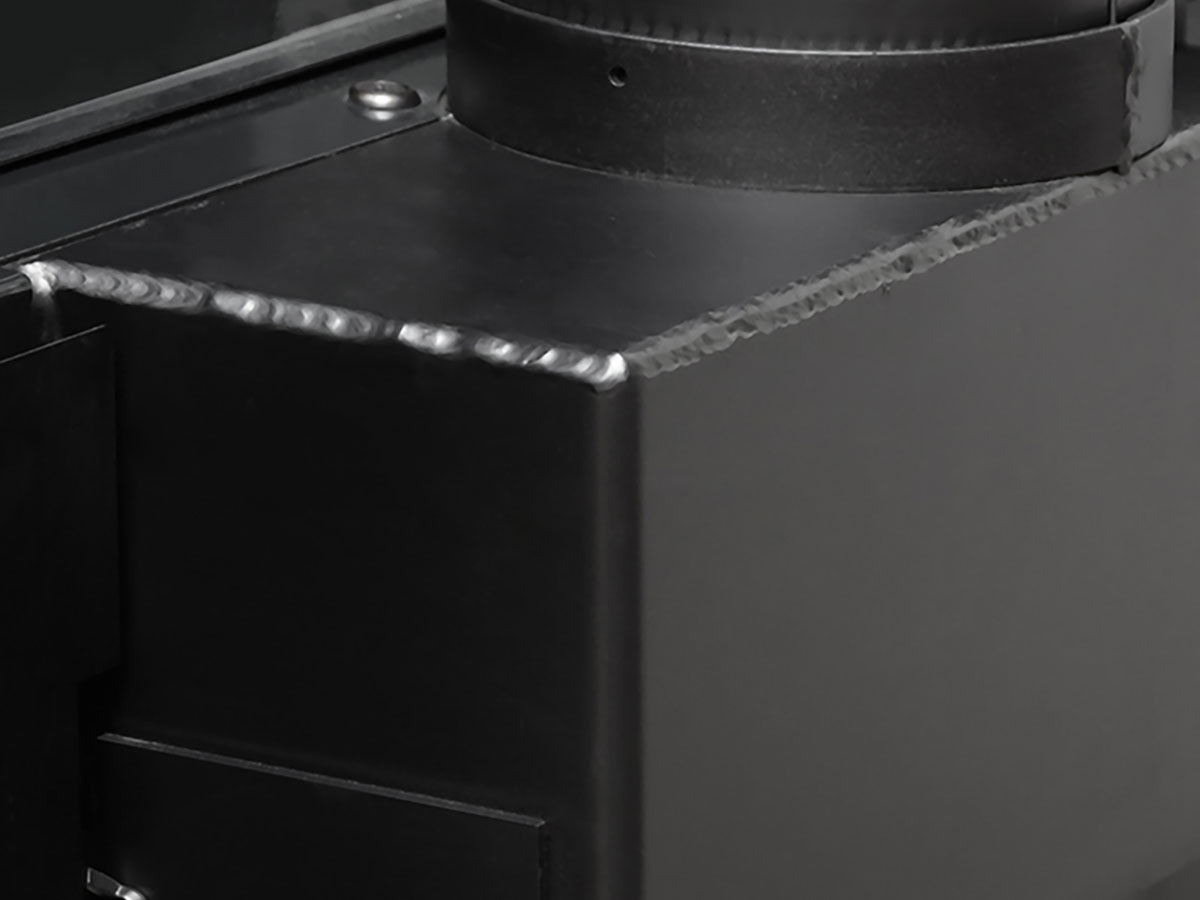

Exhaust Cleanout
Removable panel for easier cleaning. Located on right side of exhaust box.

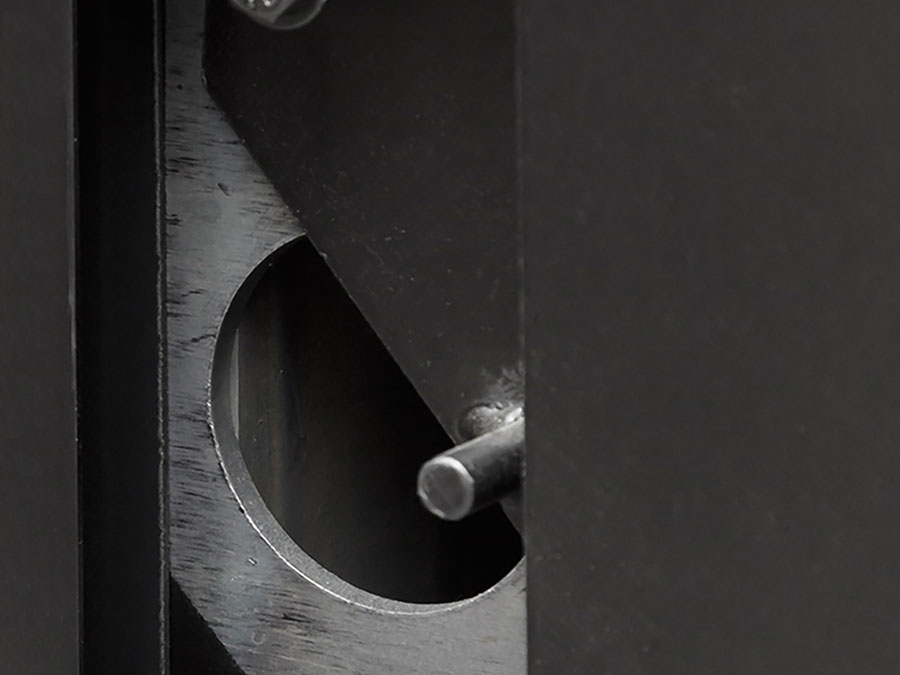

Rear Fly Ash Cleanout
Scrape any ash toward front of stove. Ash will fall to the front cleanout.
Specifications
Stove Size w/ Handles
520: 51.5”W x 33.25”D
420: 47.25”W x 33.25”D
Stovetop Surface
520: 46.5”W x 21”D
420: 42.25”W x 21”D
Height To Stovetop
520 & 420
35.25″
Height To Warming Shelf
520 & 420
Warming Shelf: 53.5”
Warming Closet w/ Shelf: 62.5″
Firebox
520: 19”D x 16”W x 17”H
420: 19”D x 12”W x 17”H

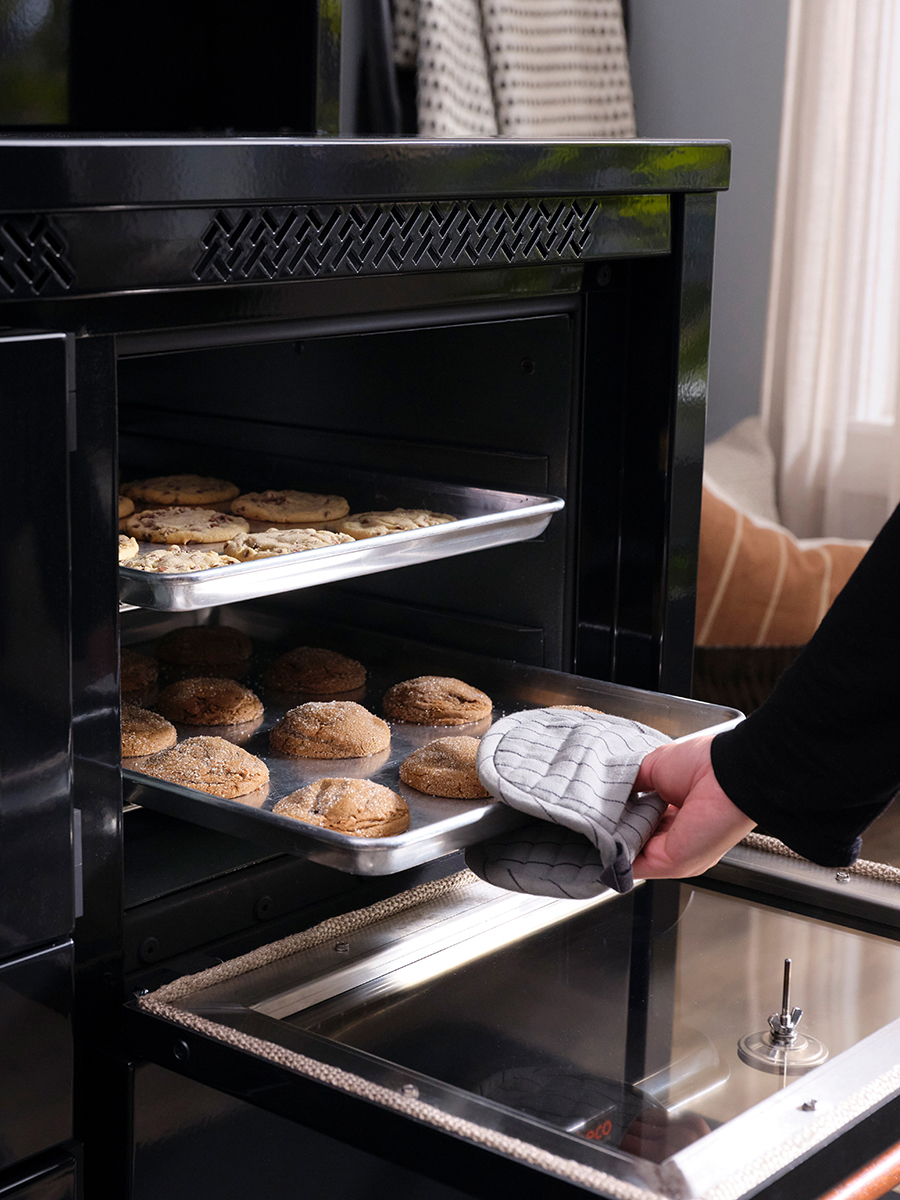

Oven
520 & 420
21”D x 18”W x 13”H
Exhaust Size
520: 7”
420: 6″
Efficiency
520 & 420
83.3%
Fuel
520 & 420
Wood or Anthracite
BTU Rating
520: 90,000
420: 72,000
Heating Area
520: Up To 2,500 sq. ft.
420: Up To 2,000 sq. ft.
Total Weight
520: 840 lbs.
420: 775 lbs.
Draft Regulator
520 & 420
DS Hot Air Bi-Metal
Floor Protector
520: 48” x 62″ Minimum Required
420: 48” x 58″ Minimum Required
UL Tested
520 & 420
UL #1482 & CAN/ULC #S627
Warranty
520 & 420
Limited Lifetime
